RESEARCH PAPER
A Health Indicator-Driven Adaptive Feature Mode Decomposition Method for Intelligent Bearing Fault Diagnosis
1
north university of china, China
A – Conceptualization; B – Methodology; C – Software; D – Validation; E – Formal analysis; F – Investigation; G – Resources; H – Data curation; I – Writing – original draft; J – Writing – review & editing; K – Visualization; L – Supervision; M – Project administration; N – Funding acquisition
Submission date: 2026-04-18
Final revision date: 2026-05-11
Acceptance date: 2026-08-11
Online publication date: 2026-09-07
KEYWORDS
rolling bearingfault diagnosiscomposite health indexfusion evaluation indexadaptive feature mode decomposition
TOPICS
ABSTRACT

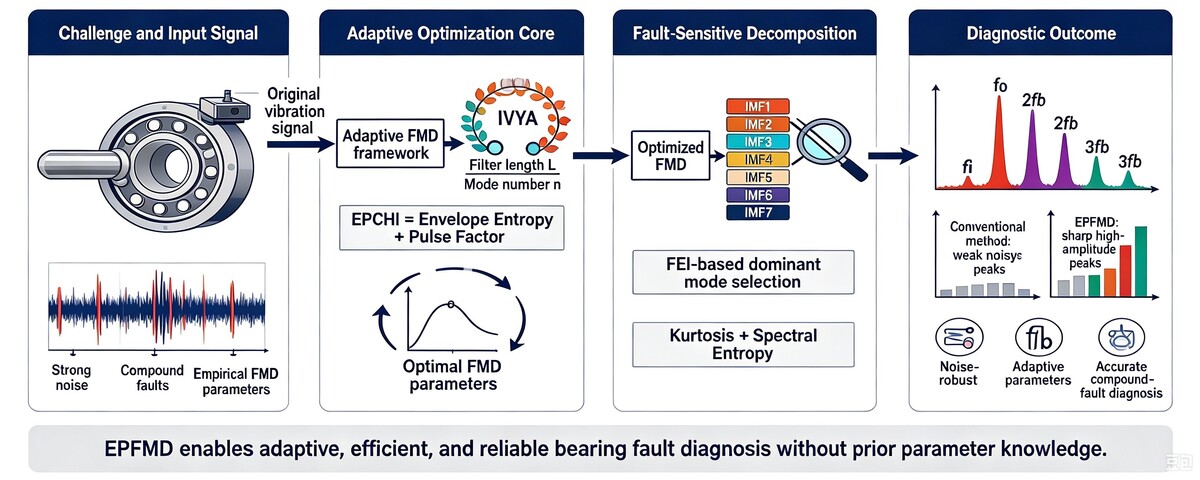

Vibration signals in rotating machinery are often complex, with fault-induced pulses masked by noise and coupled under compound fault conditions, which increases diagnostic difficulty. Although Feature Mode Decomposition can analyze non-stationary signals, its performance is limited by empirical parameter settings, especially filter length and mode number.A parameter-adaptive framework named EPFMD is developed to address this issue. It optimizes key parameters using a composite health indicator that combines envelope entropy and pulse factor, enabling accurate characterization of fault features. The Ivy Algorithm is applied for automatic parameter optimization. A fusion evaluation index based on kurtosis and pulse factor is then used to select the most fault-sensitive component, followed by envelope demodulation for feature extraction. Validation on the CWRU dataset and experimental data demonstrates that the proposed method effectively identifies inner race, outer race, and compound faults, showing superior performance compared with existing methods.
REFERENCES (26)
1.
Zhong H, He D, Sun H, He C, Lao Z. A novel meta-learning method based on relation network for train bearing fault diagnosis. Nonlinear Dynamics 2025; 113: 27001-29. https://doi.org/10.1007/s11071....
2.
Guo J, Wang S, Guan W, Wang G, Liu Z, Wu S. Research on noise-robust fault diagnosis method for rotating machinery in dynamic environments based on multi-scale convolution. Nonlinear Dynamics 2025; 113: 33399-421. https://doi.org/10.1007/s11071....
3.
Zhuang Y, He D, Jin Z, Wei Z, Sun H, Wu J, et al. SWR2 Net: a fault diagnosis framework for rotating machine under limited samples and noise interference. Nonlinear Dynamics 2025; 113: 22823-52. https://doi.org/10.1007/s11071....
4.
Dong Y, Jiang H, Wang X, Li Z. Entropy-Oriented Semi-Supervised Dynamic Prototype Contrastive Learning for Rotating Machinery Fault Diagnosis. IEEE/ASME Transactions on Mechatronics 2025; 30: 4934-45. https://doi.org/10.1109/TMECH.....
5.
Wang X, Jiang H, Dong Y, Mu M. Spatial-channel collaborative multi-scale graph interaction deep transfer learning for unsupervised rotating machinery fault diagnosis. Engineering Applications of Artificial Intelligence 2026; 176: 114691. https://doi.org/10.1016/j.enga....
6.
Li Z, Jiang H, Dong Y. A convolutional-transformer reinforcement learning agent for rotating machinery fault diagnosis. Expert Systems with Applications 2025; 271: 126669. https://doi.org/10.1016/j.eswa....
7.
Yan J, Zhu X, Wang X, Zhang D. A New Fault Diagnosis Method for Rolling Bearings with the Basis of Swin Trans-former and Generalized S Transform. Mathematics 2024; 13: 45. https://doi.org/10.3390/math13....
8.
Hou J, Wu Y, Ahmad AS, Gong H, Liu L. A Novel Rolling Bearing Fault Diagnosis Method Based on Adaptive Feature Selection and Clustering. IEEE Access 2021; 9: 99756-67. https://doi.org/10.1109/ACCESS....
9.
Yan X, Liu Y, Jia M. A Fault Diagnosis Approach for Rolling Bearing Integrated SGMD, IMSDE and Multiclass Relevance Vector Machine. Sensors 2020; 20: 4352. https://doi.org/10.3390/s20154....
10.
Chennana A, Ahmia A, Megherbi AC, Bessous N, Sbaa S, Teta A. A Bearing Faults Diagnosis Enhancement Using EMD and MEDA. 2024 2nd International Conference on Elec-trical Engineering and Automatic Control (ICEEAC), Setif, Al-geria: IEEE; 2024, p. 1–6. https://doi.org/10.1109/ICEEAC....
11.
Xu L, Li W, Zhang B, Zhu Y, Lang C. Fault Diagnosis of Mine Truck Hub Drive System Based on LMD Multi-Component Sample Entropy Fusion and LS-SVM. Actuators 2023; 12: 468. https://doi.org/10.3390/act121....
12.
Liu F, Wang H, Li W, Zhang F, Zhang L, Jiang M, et al. Fault diagnosis of rolling bearing combining improved AWSGMD-CP and ACO-ELM model. Measurement 2023; 209: 112531. https://doi.org/10.1016/j.meas....
13.
Chauhan S, Vashishtha G, Kumar R, Zimroz R, Gupta MK, Kundu P. An adaptive feature mode decomposition based on a novel health indicator for bearing fault diagnosis. Measurement 2024; 226: 114191. https://doi.org/10.1016/j.meas....
14.
Wang S, Xiang J, Tang H, Liu X, Zhong Y. Minimum entropy deconvolution based on simulation-determined band pass filter to detect faults in axial piston pump bearings. ISA Transactions 2019; 88: 186-98. https://doi.org/10.1016/j.isat....
15.
Guo J, Liu Y, Yang R, Sun W, Xiang J. A simulation-driven difference mode decomposition method for fault diagnosis in axial piston pumps. Advanced Engineering Informatics 2024; 62: 102624. https://doi.org/10.1016/j.aei.....
16.
Li J, Wang Y, Xiang J, Chen Z. A simulation guided BCSM blind deconvolution for fault diagnosis in wind turbine bearing. Measurement Science and Technology 2025; 36: 036143. https://doi.org/10.1088/1361-6....
17.
Li J, Liu Y, Chen Q, Xiang J. Simulation-driven bandpass filter in association with an optimal bandwidth to detect faults in axial piston pumps. Measurement Science and Technology 2023; 34: 095116. https://doi.org/10.1088/1361-6....
18.
Miao Y, Zhang B, Li C, Lin J, Zhang D. Feature Mode Decom-position: New Decomposition Theory for Rotating Machinery Fault Diagnosis. IEEE Trans Ind Electron 2023; 70: 1949-60. https://doi.org/10.1109/TIE.20....
19.
Garcés MA. Quantized Information in Spectral Cyberspace. Entropy 2023; 25: 419. https://doi.org/10.3390/e25030....
20.
Wang B, Tang H, Zu X, Chen P. Adaptive Feature Extraction Using Sparrow Search Algorithm-Variational Mode Decom-position for Low-Speed Bearing Fault Diagnosis. Sensors 2024; 24: 6801. https://doi.org/10.3390/s24216....
21.
Ghasemi M, Zare M, Trojovský P, Rao RV, Trojovská E, Kan-dasamy V. Optimization based on the smart behavior of plants with its engineering applications: Ivy algorithm. Knowledge-Based Systems 2024; 295: 111850. https://doi.org/10.1016/j.knos....
22.
Wei D, Jiang H, Shao H, Li X, Lin Y. An optimal variational mode decomposition for rolling bearing fault feature ex-traction. Measurement Science and Technology 2019; 30: 055004. https://doi.org/10.1088/1361-6....
23.
Lu JT, Yao T, Li SM, Cui RQ. An intelligent fault diagnosis method for rolling bearings based on hybrid characteristics. Journal of Vibration and Shock 2022; 41: 79-84. https://doi.org/10.13465/j.cnk....
24.
Yan X, Jia M. Bearing fault diagnosis via a parameter-optimized feature mode decomposition. Measurement 2022; 203: 112016. https://doi.org/10.1016/j.meas....
25.
Sun Y, Cui J. Rolling bearing fault diagnosis: a parameter adaptive method based on a new fitness function. Results in Engineering 2025; 28: 107224. https://doi.org/10.1016/j.rine....
