RESEARCH PAPER
The local load-carrying capacity of composite structures undergoing bending under variable boundary conditions
1
Politechnika Lubelska, Poland
These authors had equal contribution to this work
A – Conceptualization; B – Methodology; C – Software; D – Validation; E – Formal analysis; F – Investigation; G – Resources; H – Data curation; I – Writing – original draft; J – Writing – review & editing; K – Visualization; L – Supervision; M – Project administration; N – Funding acquisition
Submission date: 2026-04-02
Final revision date: 2026-05-21
Acceptance date: 2026-06-25
Online publication date: 2026-07-15
KEYWORDS
TOPICS
ABSTRACT

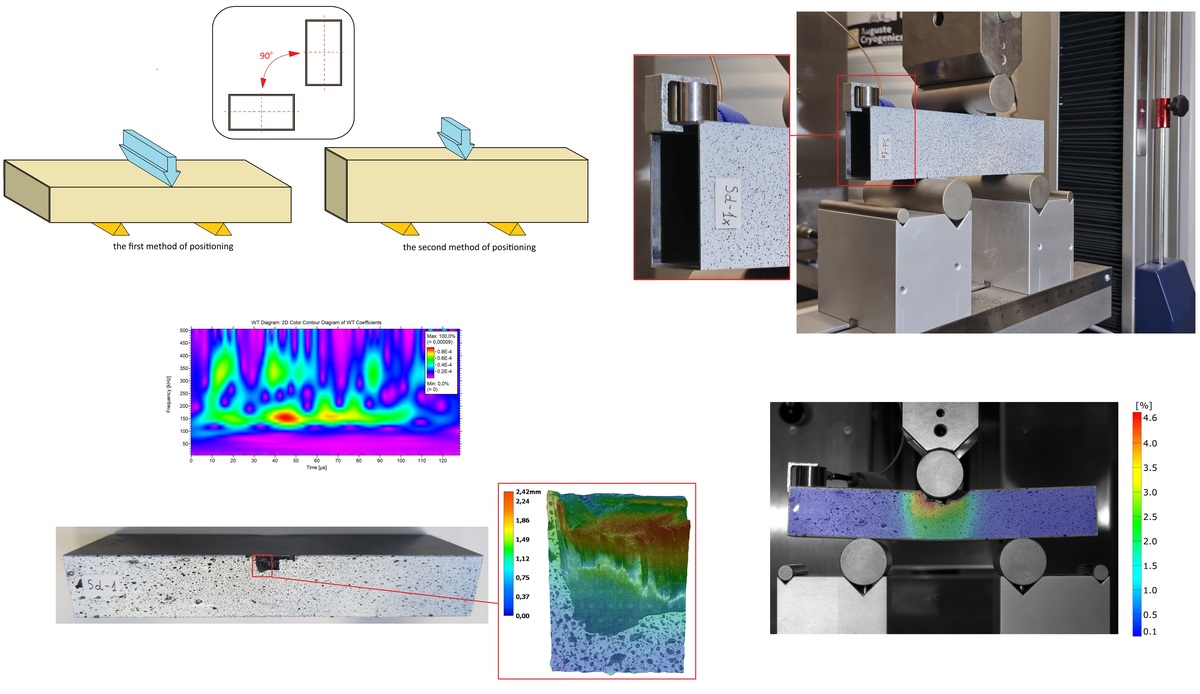

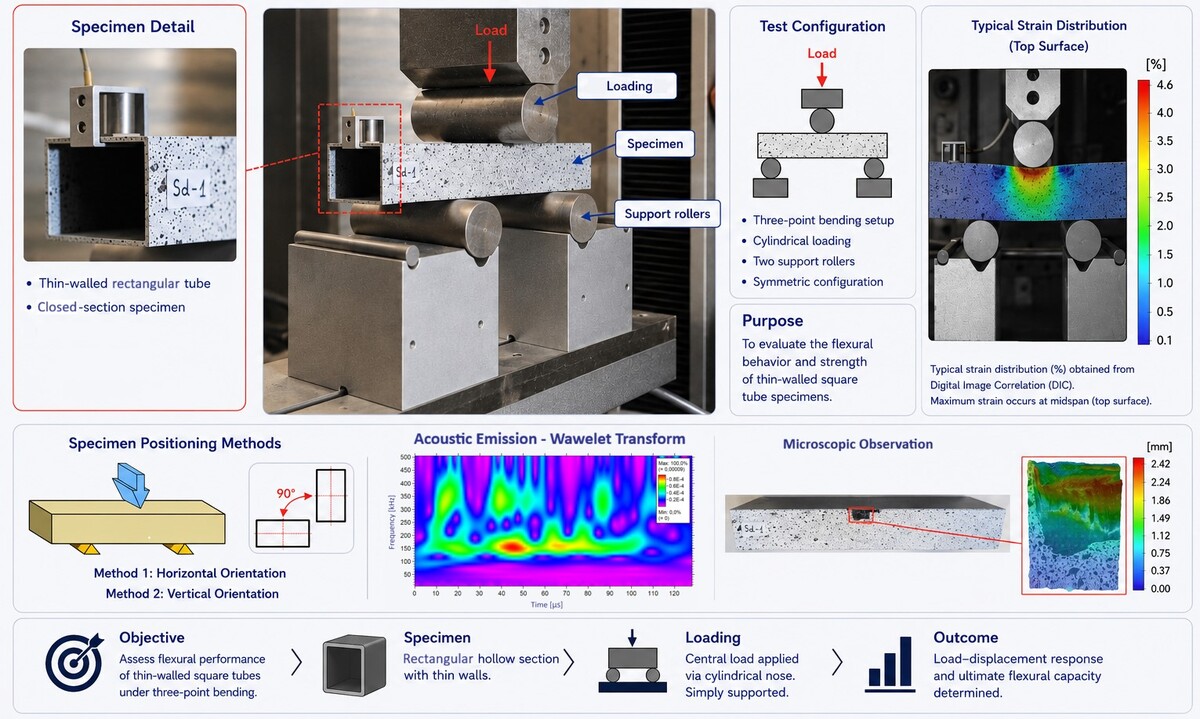

The research focused on thin-walled composite columns made of CFRP. The test specimens had identical geometric parameters and material properties. The research involved static three-point bending tests and used several interdisciplinary research methods to evaluate the behaviour of the structure. The paper primarily focused on evaluating the load-carrying capacity of the structure and identifying the stages of composite material damage. During the tests, the impact of changing boundary conditions (support spacing) and the method of arranging the specimen in relation to the crossbeam on the load-carrying capacity of the structure was evaluated. This was a novel approach compared to previous research in the subject literature. This paper presents research that aims to highlight the key aspects relating to the effect of support spacing and the method of fixing the test specimens on the operational conditions of the structure. The results obtained were compared in terms of quantity and quality.
REFERENCES (39)
1.
Fascetti A, Feo L, Nistic N, Penna R. Web-flange behavior of pultruded GFRP I beams: a lattice model for the interpretation of experimental results. Composites Part B Engineering 2016; 100: 257-269. https://doi.org/10.1016/j.comp....
2.
Berardi VP, Perrella M, Feo L, Cricrì G. Creep behavior of GFRP laminates and their phases: experimental investigation and analytical modeling. Composites Part B Engineering 2017; 122: 136-144. https://doi.org/10.1016/j.comp....
3.
Kubiak T, Kolakowski Z, Swiniarski J, Urbaniak M, Gliszczynski A. Local buckling and post-buckling of composite channel-section beams – numerical and experimental investigations. Composites Part B Engineering 2016; 91: 176-188. https://doi.org/10.1016/j.comp....
4.
Rozylo P. Experimental-numerical test of open section composite columns stability subjected to axial compression. Archives of Materials Science and Engineering 2017; 84(2): 58-64. https://doi.org/10.5604/01.300....
5.
Kolanu NR, Raju G, Ramji M. A unified numerical approach for the simulation of intra and inter laminar damage evolution in stiffened CFRP panels under compression. Composites Part B Engineering 2020; 190: 107931. https://doi.org/10.1016/j.comp....
6.
Banat D, Mania RJ. Failure assessment of thin-walled FML profiles during buckling and postbuckling response. Composites Part B Engineering 2017; 112: 278-289. https://doi.org/10.1016/j.comp....
7.
Rozylo P. Failure phenomenon of compressed thin-walled composite columns with top-hat cross-section for three laminate lay-ups. Composite Structures 2023; 304: 116381. https://doi.org/10.1016/j.comp....
8.
Rozylo P, Debski H. Failure study of compressed thin-walled composite columns with top-hat cross-section. Thin-Walled Structures 2022; 180: 109869. https://doi.org/10.1016/j.tws.....
9.
Li ZM, Qiao P. Buckling and postbuckling behavior of shear deformable anisotropic laminated beams with initial geometric imperfections subjected to axial compression. Engineering Structures 2015; 85: 277-292. https://doi.org/10.1016/j.engs....
10.
Madukauwa-David ID, Drissi-Habti M. Numerical simulation of the mechanical behavior of a large smart composite platform under static loads. Composites Part B Engineering 2016; 88: 19-25. https://doi.org/10.1016/j.comp....
11.
Ding F, Cai Y, Tu W, Chen Q, Peng M, Ouyang F, Cai H, Fan K, Zhou W. Research on ultrasonic non-destructive detection method for defects in GFRP laminates based on machine learning. Ocean Engineering 2025; 327: 120972. https://doi.org/ 10.1016/j.oceaneng.2025.120972.
12.
Zhao Y, Zhang Y, Wang J, Yue Q, Chen H. Comparison of non-destructive testing methods of bolted joint status in steel structures. Measurement 2025; 242: 116318. https://doi.org/10.1016/j.meas....
13.
Golewski P, Sadowski T, Kneć M, Budka M. The effect of thermal aging degradation of CFRP composite on its mechanical properties using destructive and non-destructive methods and the DIC system. Polymer Testing 2023; 118: 107902. https://doi.org/10.1016/j.poly....
14.
Katunin A, Pivdiablyk I, Gornet L, Rozycki P. A hybrid method for determination of fatigue limit and non-destructive evaluation of composite structures after low-velocity impact loading. Composites Part B Engineering 2022; 238: 109898. https://doi.org/10.1016/j.comp....
15.
Gliszczynski A, Kubiak T. Load-carrying capacity of thin-walled composite beams subjected to pure bending. Thin-Walled Structures 2017; 115: 76-85. https://doi.org/10.1016/j.tws.....
16.
Kazmierczyk F, Urbaniak M, Swiniarski J, Kubiak T. Influence of boundary conditions on the behaviour of composite channel section subjected to pure bending – Experimental study. Composite Structures 2022; 279: 114727. https://doi.org/10.1016/j.comp....
17.
Banat D, Mania RJ, Degenhardt R. Stress state failure analysis of thin-walled GLARE composite members subjected to axial loading in the post-buckling range. Composite Structures 2022; 289: 115468. https://doi.org/10.1016/j.comp....
18.
Banat D, Mania RJ. Damage analysis of thin-walled GLARE members under axial compression – Numerical and experiment investigations. Composite Structures 2020; 241: 112102. https://doi.org/10.1016/j.comp....
19.
Li W, Cai H, Li C, Wang K, Fang L. Progressive failure of laminated composites with a hole under compressive loading based on micro-mechanics. Advanced Composite Materials 2014; 23: 477-490. https://doi.org/10.1080/092430....
20.
Hu H, Niu F, Dou T, Zhang H. Rehabilitation Effect Evaluation of CFRP-Lined Prestressed Concrete Cylinder Pipe under Combined Loads Using Numerical Simulation. Mathematical Problems in Engineering 2018; 2018: 3268962. https://doi.org/10.1155/2018/3....
21.
Samborski S, Rzeczkowski J, Korzec-Strzałka I. Experimental study of delamination process in elastically coupled laminates with the acoustic emission technique. Engineering Structures 2024; 300: 117196. https://doi.org/10.1016/j.engs....
22.
Sabik A, Rucka M, Andrzejewska A, Wojtczak E. Tensile failure study of 3D printed PLA using DIC technique and FEM analysis. Mechanics of Materials 2022; 175: 104506. https://doi.org/10.1016/j.mech....
23.
Rozylo P. Failure analysis of beam composite elements subjected to three-point bending using advanced numerical damage models. Acta Mechanica et Automatica 2023; 17: 133-144. https://doi.org/10.2478/ama-20....
24.
Rozylo P. Study of the behavior of thin-walled composite structures with closed sections under three-point bending tests. Advances in Science and Technology Research Journal 2025; 19(6): 403-413. https://doi.org/10.12913/22998....
25.
Gliszczynski A, Czechowski L. Collapse of channel section composite profile subjected to bending, Part I: Numerical investigations. Composite Structures 2017; 178: 383-394. https://doi.org/10.1016/j.comp....
26.
Jakubczak P, Gliszczynski A. Bienias J, Majerski K. Kubiak T. Collapse of channel section composite profile subjected to bending Part II: Failure analysis. Composite Structures 2017; 179: 1-20. https://doi.org/10.1016/j.comp....
27.
Heidari-Rarani M, Sayedain M. Finite element modeling strategies for 2D and 3D delamination propagation in composite DCB specimens using VCCT, CZM and XFEM approaches. Theoretical and Applied Fracture Mechanics 2019; 103: 102246. https:/doi.org/10.1016/j.tafmec.2019.102246.
28.
Camanho PP, Davila CG, de Moura MF. Numerical simulation of mixed-mode progressive delamination in the composite materials, Journal of Composite Materials 2003; 37(16): 1415-1438. https://doi.org/10.1177/002199....
29.
Ribeiro ML, Vandepitte D, Tita V. Damage model and progressive failure analyses for filament wound composite laminates. Applied Composite Materials 2013; 20: 975-992. https://doi.org/10.1007/s10443....
30.
Rozylo P, Debski H. Stability and load carrying capacity of thin-walled composite columns with square cross-section under axial compression. Composite Structures 2024; 329: 117795. https://doi.org/10.1016/j.comp....
31.
Rozylo P. Limit states of thin-walled composite structures with closed sections under axial compression. Composites Part B Engineering 2024; 287: 111813. https://doi.org/10.1016/j.comp....
32.
Rozylo P, Rogala M, Pasnik J. Buckling analysis of thin-walled composite structures with rectangular cross-sections under compressive load. Materials 2023; 16: 6835. https://doi.org/10.3390/ma1621....
33.
Rozylo P, Rogala M, Pasnik J. Load-Carrying Capacity of Thin-Walled Composite Columns with Rectangular Cross-Section under Axial Compression. Materials 2024; 17: 1615. https://doi.org/10.3390/ma1707....
34.
Wysmulski P, Debski H, Falkowicz K. Stability analysis of laminate profiles under eccentric load. Composite Structures 2020; 238: 111944. https://doi.org/10.1016/j.comp....
35.
Falkowicz K. Experimental and numerical analysis of compression thin-walled composite plates weakened by cut-outs. Archives of Civil Engineering 2017, LXIII, 161-172. https://doi.org/10.1515/ace-20....
36.
Falkowicz K, Wysmulski P, Debski H. Buckling Analysis of Laminated Plates with Asymmetric Layup by Approximation Method. Materials 2023; 16: 4948. https://doi.org/10.3390/ma1614....
37.
Rozylo P, Smagowski W, Pasnik J. Experimental Research in the Aspect of Determining the Mechanical and Strength Properties of the Composite Material Made of Carbon-Epoxy Composite. Advances in Science and Technology Research Journal 2023; 17(2): 232-246. https://doi.org/10.12913/22998....
38.
Hodgkinson J.M. Mechanical Testing of Advanced Fibre Composites. Woodhead Publishing Ltd., Cambridge, 2000. https://doi.org/10.1201/978143....
39.
Ramkumar, R.; Rajaram, K.; Saravanan, P.; Venkatesh, R.; Saranya, K.; Jenaris, D.S. Determination of mechanical properties of CFRP composite reinforced with Abaca and Kenaf fibres. Materials Today: Proceedings 2022; 62: 5311-5316. https://doi.org/10.1016/j.matp....
