RESEARCH PAPER
Figure from article: Influence of selected...

KEYWORDS
TOPICS
ABSTRACT

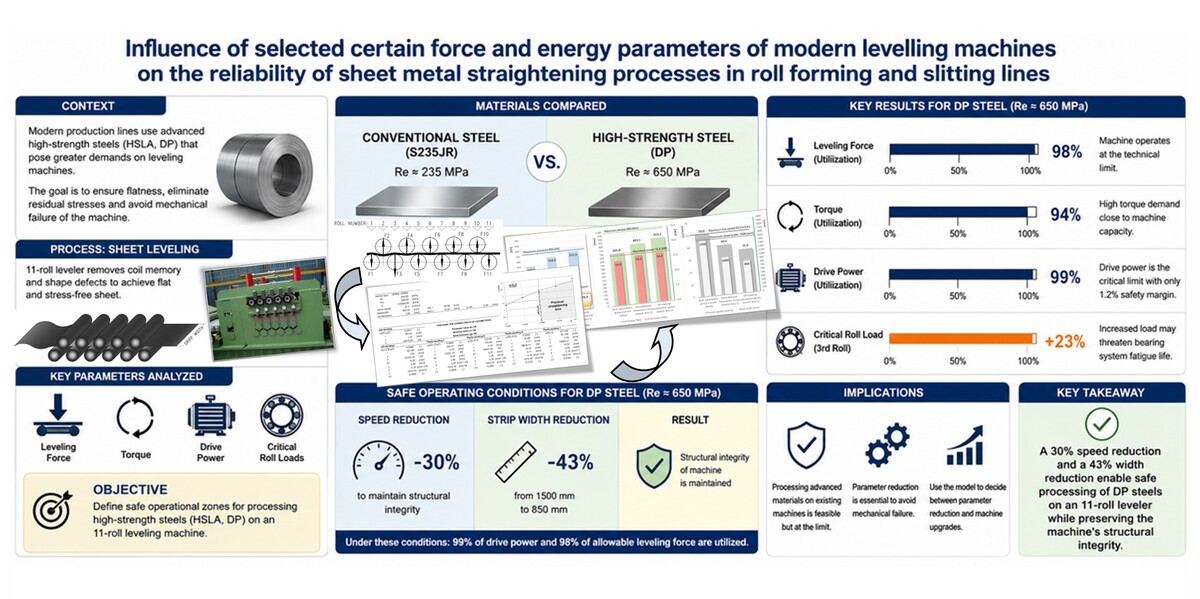

This study evaluates the reliability of an 11-roll leveler when processing high-strength steels (HSLA, DP) instead of conventional structural grades (S235JR). Key indicators: leveling force, torque, drive power, and critical roll loads, were analyzed to define safe operational zones. For DP steels (Re = 650 MPa), maintaining structural integrity necessitates a 30% speed reduction and a 43% width reduction (from 1500 to 850 mm). Under these conditions, the machine operates at its technical limit, utilizing 99% of drive power and 98% of allowable force. A 23% load increase on the third roll highlights potential risks to the bearing system’s fatigue life. The findings provide practical guidelines for process engineers to optimize roll forming lines, minimize residual stresses, and prevent mechanical failure. The results demonstrate that processing advanced materials on existing machines is feasible but requires radical parameter adjustments to ensure the durability of the drive transmission and roller supports.
REFERENCES (34)
1.
Tisza M, Czinege I. Comparative study of the application of steels and aluminium in lightweight production of automotive parts. International Journal of Lightweight Materials and Manufacture 2018; 1: 229-238. https://doi.org/10.1016/j.ijlm....

2.
Grajcar A. Modern high-strength steels for the 3rd generation automotive industry. Stal, Metale & Nowe Technologie 2014; 3-4: 52-56.

3.
Bajerlein M, Czerwiński J, Merkisz J, Daszkiewicz P, Rymaniak Ł. High temperature alloy steel used in railway vehicles. TTS Technika Transportu Szynowego 2017; 12: 228-232.

4.
Dzięgielewski A, Kowalski A, Kowalski M, Zakrzewski T. Usage of the coldformed profiles in contemporary buildings construction. Inżynieria i Budownictwo 2017; 73(4): 180-183.

5.
Marchwiński J. Steel in architecture. Builder 2019; 258: 33-36. https://doi.org/10.5604/01.300....

6.
Garbarz B, Marcisz J, Żółkiewski K, Lubowiecki P, Nowak B, Smoleń M, Skurczyński M. Industrial technology of manufacturing ultra-strength nanobainitic steel plates. Journal of Metallic Materials 2020; 72(2): 2-22. http://doi.org/10.32730/imz.26....

7.
Stańczyk M. Influence of the quality of metal sheet edges after strip slitting processes in integrated lines on the quality of laser welds. Advances in Science and Technology Research Journal 2023; 17(2): 136-146. https://doi.org/10.12913/22998....

8.
Slitting lines producer: https://www.georg.com/en/produ...; [accessed 11 June 2025].

9.
Slitting lines producer: https://carbo.com.pl/; [accessed 11 June 2025].

10.
Slitting lines producer: https://camu.it/pl/slitting-li...; [accessed 12 June 2025].

11.
Slitting lines producer: https://www.bradburygroup.com/...; [accessed 12 June 2025].

12.
Stańczyk M, Figlus T. A method for the selection of certain force and energy parameters of automatic sheet metal coiling machines. Metalurgija 2016; 55(1): 79-82.

13.
Yi G, Wang Z, Hu Z. A Novel Modeling Method in Metal Strip Leveling Based on a Roll-Strip Unit. Mathematical Problems in Engineering 2020; Article ID 1486864: 1-16. doi:10.1155/2020/1486864.

14.
Liu Z, Luo Y, Wang Y, Liao T.W, Deng M. An analytical study of optimal roller intermeshes for the plate leveling process. Journal of Engineering Manufacture 2021; 235(1-2): 278-289. https://doi.org/10.1177/095440....

15.
Grüber M, Hirt G. A strategy for the controlled setting of flatness and residual stress distribution in sheet metals via roller levelling, International Conference on the Technology of Plasticity, ICTP 2017, 17-22 September 2017, Cambridge, United Kingdom, Procedia Engineering 207 (2017) 1332–1337.

16.
Nakhoul R, Montmitonnet P, Potier-Ferry M. Multi-scale method for modeling thin sheet buckling under residual stresses in the context of strip rolling. International Journal of Solids and Structures 2015; 66: 62-76. doi:10.1016/j.ijsolstr.2015.03.028.

17.
Theis E. Everything you need to know about flatteners and levelers for coil processing Part 2. The Fabricator. 2002; 7.

18.
Machines producer: https://thebronxgroup.com/ ; [accessed 22 October 2025].

19.
Belyaev S, Fedulov A, Alexandrova A, Raskatov E, Meshchaninova T. The research on the levelling process of thick slabs based on the electric motor parameters monitoring. Materials Science and Engineering 2020; 966 012102: 1-6. doi:10.1088/1757-899X/966/1/012102.

20.
Uematsu H, Keizo Abe. Overview of Heat Treat Leveler for ArcelorMittal Burns Harbor. Association for Iron & Steel Technology 2014: 2531-2543.

21.
Machines producer: https://www.kohler-germany.com... ; [accessed 12 December 2025].

22.
Machines producer: https://www.georg.com/en/produ... ; [accessed 12 December 2025].

23.
Dai W, Maropoulos P.G, Zhao Y. Reliability modelling and verification of manufacturing processes based on process knowledge management. International Journal of Computer Integrated Manufacturing 2013; 28(1): 98-111. https://doi.org/10.1080/095119....

24.
Chlebus M, Werbińska-Wojciechowska S. Wybrane problemy oceny niezawodnościowej procesów produkcyjnych. Zeszyty Naukowe Politechniki Poznańskiej 2017; 72: 5-18. https://doi.org/10.21008/j.023....

25.
Lachowicz M, Sobczak-Piąstka J, Podhorecki A. Propozycja nowego modelu niezawodności realizacji procesów inwestycyjno-budowlanych. Materiały budowlane 2015; 12(520): 70-73. doi:10.15199/33.2015.12.22.

26.
Sobaszek Ł, Gola A, Świć A. Time-based machine failure prediction in multi-machine manufacturing systems. Eksploatacja i Niezawodność – Maintenance and Reliability 2020; 22 (1): 52-62. https://doi.org/10.17531/ein.2....

27.
Nicał A, Szmigiera E, Protchenko K, Kaczorek K. Niezawodność linii produkcyjnych. Napędy i sterowanie 2022; 4: 74-76.

28.
Machines producer: https://matio.pl; [accessed 22 October 2025].

29.
Andres G. Shape Measurement System for Roller Levelers. Youngstown State University 2015.

30.
Jaglarz Z, Leskiewicz W, Morawiecki M. Technologia i urządzenia walcownicze, Wydawnictwo „Śląsk”, Katowice 1971.

31.
Geleji A. Walzwerk - und Schmiedemaschinen, Veb Verlag Technik, Berlin 1961.

32.
Celikov A.I, Smirnow W.W. Prokatnyje stany, Moskwa 1958.A.

33.
Distributor of specialist software: http://www.data-m.pl/; [accessed 17 December 2025].

34.
Bräutigam J.H. Richten mit Walzenrichtmaschinen, Arku Maschinenbau GmbH, 1987.
