RESEARCH PAPER
TMDANN-A: Boundary-aware discriminative alignment and condition-guided multi-source at-tention for vibration-based bearing fault diagnosis under variable operating conditions
1
xinjiang university, China
2
Chengdu Institute of Special Equipment Inspection and Testing, China
3
Shanghai University of Electric Power, China
A – Conceptualization; B – Methodology; C – Software; D – Validation; E – Formal analysis; F – Investigation; G – Resources; H – Data curation; I – Writing – original draft; J – Writing – review & editing; K – Visualization; L – Supervision; M – Project administration; N – Funding acquisition
Submission date: 2026-03-21
Final revision date: 2026-05-20
Acceptance date: 2026-07-11
Online publication date: 2026-07-29
KEYWORDS
Condition monitoringRolling bearingFault diagnosisVariable operating conditionsMulti-source domain adapta-tion
TOPICS
ABSTRACT

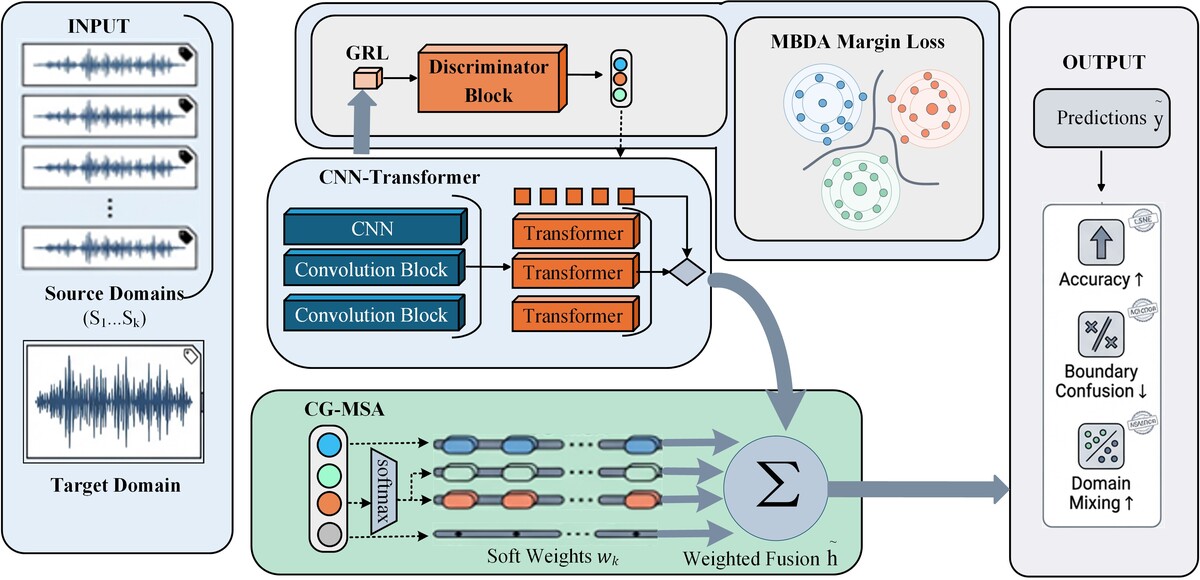

Rolling bearing fault diagnosis is important for condition monitoring of rotating machinery. In practice, variations in operating conditions and heterogeneity among source domains of-ten cause distribution shifts in vibration signals, while labeled target-domain data are usually unavailable. To address this issue, this paper proposes TMDANN-A, a multi-source domain adaptation framework for vibration-based bearing fault diagnosis. The framework combines adversarial domain alignment, boundary-aware discriminative learning, and condition-guided source weighting to improve domain invariance and class separability. A hierarchical CNN-Transformer encoder is used to capture local impulsive features and long-range tem-poral dependencies. Experiments on the JNU and PU datasets achieve 98.51% average accu-racy over six transfer tasks. On an industrial test-rig dataset, the method further achieves 95.42% average accuracy, 95.44% Macro-F1, and 95.22% mean fault recall. The results verify its effectiveness under complex operating conditions.
REFERENCES (35)
1.
Gao Y, Li X. Fault diagnosis of centrifugal fan bearings based on I-CNN and JMMD in the context of sample imbalance. Eksploatacja i Niezawodnosc-Maintenance and Reliability 2024; 26(4): 191459. https://doi.org/10.17531/ein/1....
2.
Wang P, Xiong H, He H. Bearing fault diagnosis under various conditions using an incremental learning-based multi-task shared classifier. Knowledge-Based Systems, 2023, 266:110395. https://doi.org/10.1016/j.knos....
3.
Liu H, Shao M, Fu Y. Structure-preserved multi-source domain adaptation. In: 2016 IEEE 16th International Conference on Data Mining; Montreal, QC, Canada. Piscataway, NJ: IEEE; 2016. p. 1059–1064. doi: 10.1109/ICDM.2016.0136.
4.
Lei X, Lu N, Jiang B, Wang C, Chen C. A multi-scale attention mechanism diagnosis method with adaptive online updating based on deep learning under variable working conditions. Eksploatacja i Niezawodnosc – Maintenance and Reliability 2025; 27(1): 192975. https://doi.org/10.17531/ein/1....
5.
Qian W, Li S, Jiang X. Deep transfer network for rotating machine fault analysis. Pattern Recognition, 2019, 96:106993. https://doi.org/10.1016/j.patc....
6.
Lu X, Xiao Y. Fault diagnosis method of automobile rolling bearing based on transfer learning and improved DenseNet. Eksploatacja i Niezawodnosc – Maintenance and Reliability 2025; 27(2): 194675. https://doi.org/10.17531/ein/1....
7.
Goodfellow I, Pouget-Abadie J, Mirza M, Xu B, Warde-Farley D, Ozair S, Courville A, Bengio Y. Generative adversarial networks. Communications of the ACM 2020; 63(11): 139-144. https://doi.org/10.1145/342262....
8.
Jiao JY, Lin J, Zhao M, Liang KX. Double-level adversarial domain adaptation network for intelligent fault diagnosis. Knowledge-Based Systems, 2020, 205:106236. https://doi.org/10.1016/j.knos....
9.
Deng Y, Huang D, Du S, Li G, Zhao C, Lv J. A double-layer attention based adversarial network for partial transfer learning in machinery fault diagnosis. Computers in Industry 2021; 127: 103399. https://doi.org/10.1016/j.comp....
10.
Zhang J, Kong X, Cheng L, Qi H, Yu M. Intelligent fault diagnosis of rolling bearings based on continuous wavelet transform-multiscale feature fusion and improved channel attention mechanism. Eksploatacja i Niezawodnosc – Maintenance and Reliability 2023; 25(1): 16. https://doi.org/10.17531/ein.2....
11.
Wang X, Jiang H, Wu Z, Yang Q. Adaptive variational autoencoding generative adversarial networks for rolling bearing fault diagnosis. Advanced Engineering Informatics 2023; 56: 102027. https://doi.org/10.1016/j.aei.....
12.
Li X, Li S, Zhang G, Xie Y, Wang T, Chu F. A novel interpretable dynamic weighted domain adaptation network for cross-domain fault diagnosis of bearings under time-varying speeds. Engineering Applications of Artificial Intelligence, 2026, 170: 114173. https://doi.org/10.1016/j.enga....
13.
Li X, Wu X, Yu J, Wang T, Shi C, Choi J-H, Chu F. A fault diagnosis data augmentation method integrating multimodal non-Gaussian denoising diffusion generative adversarial network. Advanced Engineering Informatics, 2025, 68: 103776. https://doi.org/10.1016/j.aei.....
14.
Wang X, Jiang H, Dong Y, Mu M. Spatial-channel collaborative multi-scale graph interaction deep transfer learning for unsupervised rotating machinery fault diagnosis. Engineering Applications of Artificial Intelligence, 2026, 176: 114691. https://doi.org/10.1016/j.enga....
15.
Dong Y, Jiang H, Wang X, Li Z. Entropy-oriented semi-supervised dynamic prototype contrastive learning for rotating machinery fault diagnosis. IEEE/ASME Transactions on Mechatronics, 2025, 30(6): 4934-4945. https://doi.org/10.1109/TMECH.....
16.
Li Z, Jiang H, Dong Y. A convolutional-transformer reinforcement learning agent for rotating machinery fault diagnosis. Expert Systems With Applications, 2025, 271: 126669. https://doi.org/10.1016/j.eswa....
17.
Ma T, Li Z, Yang D, Tang J, Liu J. A multi-source subdomain adaptation fault diagnosis method based on unidirectional movement of the target domain. Measurement Science and Technology 2024; 35(5): 056117. https://doi.org/10.1088/1361-6....
18.
Si J, Shi H, Han T, Chen J, Zheng C. Learn generalized features via multi-source domain adaptation: intelligent diagnosis under variable/constant machine conditions. IEEE Sensors Journal 2022; 22(1): 510-519. https://doi.org/10.1109/JSEN.2....
19.
Cao W, Meng Z, Sun D, Liu J, Guan Y, Cao L, Li J, Fan F. A two-stage domain alignment method for multi-source domain fault diagnosis. Measurement 2023; 214: 112818. https://doi.org/10.1016/j.meas....
20.
Peng X, Bai Q, Xia X, Huang Z, Saenko K, Wang B. Moment matching for multi-source domain adaptation. In: 2019 IEEE/CVF International Conference on Computer Vision; Seoul, Republic of Korea. Piscataway, NJ: IEEE; 2019. p. 1406-1415. https://doi.org/10.1109/ICCV.2....
21.
Ganin Y, Ustinova E, Ajakan H, Germain P, Larochelle H, Laviolette F, Marchand M, Lempitsky V. Domain-adversarial training of neural networks. Journal of Machine Learning Research 2016; 17(59): 1-35.
22.
Shen J, Qu Y, Zhang W, Yu Y. Wasserstein distance guided representation learning for domain adaptation. Proceedings of the AAAI Conference on Artificial Intelligence 2018; 32(1): 4058-4065. https://doi.org/10.1609/aaai.v....
23.
Zhu Y, Zhuang F, Wang D. Aligning domain-specific distribution and classifier for cross-domain classification from multiple sources. Proceedings of the AAAI Conference on Artificial Intelligence 2019; 33(1): 5989-5996. doi: 10.1609/aaai.v33i01.33015989.
24.
Schwendemann S, Amjad Z, Sikora A. Bearing fault diagnosis with intermediate domain based Layered Maximum Mean Discrepancy: a new transfer learning approach. Engineering Applications of Artificial Intelligence, 2021, 105:104415. https://doi.org/10.1016/j.enga....
25.
Xu R, Chen Z, Zuo W, Yan J, Lin L. Deep cocktail network: multi-source unsupervised domain adaptation with category shift. In: 2018 IEEE/CVF Conference on Computer Vision and Pattern Recognition; Salt Lake City, UT, USA. Piscataway, NJ: IEEE; 2018. p. 3964-3973. https://doi.org/10.1109/CVPR.2....
26.
Lu J, Zuo H, Zhang G. Fuzzy multiple-source transfer learning. IEEE Transactions on Fuzzy Systems 2020; 28(12): 3418–3431. https://doi.org/10.1109/TFUZZ.....
27.
Yosinski J, Clune J, Bengio Y, Lipson H. How transferable are features in deep neural networks? In: Advances in Neural Information Processing Systems 27. Red Hook, NY: Curran Associates; 2014. p. 3320-3328.
28.
Li X, Su K, He Q, Wang X, Xie Z. Research on fault diagnosis of highway Bi-LSTM based on attention mechanism. Eksploatacja i Niezawodnosc-Maintenance and Reliability, 2023, 25(2): 162937. https://doi.org/10.17531/ein/1....
29.
Wan L, Li Y, Chen K, Gong K, Li C. A novel deep convolution multi-adversarial domain adaptation model for rolling bearing fault diagnosis. Measurement, 2022, 191:110752. https://doi.org/10.1016/j.meas....
30.
Lessmeier C, Kimotho JK, Zimmer D, Sextro W. Condition monitoring of bearing damage in electromechanical drive systems by using motor current signals of electric motors: a benchmark data set for data-driven classification. PHM Society European Conference 2016; 3(1): 376-383. https://doi.org/10.36001/phme.....
31.
Sun B, Saenko K. Deep CORAL: correlation alignment for deep domain adaptation. In: Hua G, Jégou H, editors. Computer Vision—ECCV 2016 Workshops, Part III. Lecture Notes in Computer Science, vol. 9915. Cham: Springer; 2016. p. 443-450. https://doi.org/10.1007/978-3-....
32.
Zhang Y, Liu T, Long M, Jordan MI. Bridging theory and algorithm for domain adaptation. In: Chaudhuri K, Salakhutdinov R, editors. Proceedings of the 36th International Conference on Machine Learning. Proceedings of Machine Learning Research. 2019; 97: 7404-7413.
33.
Long M, Cao Z, Wang J, Jordan MI. Conditional adversarial domain adaptation. In: Advances in Neural Information Processing Systems 31. Red Hook, NY: Curran Associates; 2018. p. 1647-1657.
34.
Rahimian H, Mehrotra S. Frameworks and results in distributionally robust optimization. Open Journal of Mathematical Optimization 2022; 3: 4. https://doi.org/10.5802/ojmo.1....
35.
Zhang Y, Ren Z, Zhou S, Yu T. Adversarial domain adaptation with classifier alignment for cross-domain intelligent fault diagnosis of multiple source domains. Measurement Science and Technology 2021; 32(3): 035102. https://doi.org/10.1088/1361-6....
