RESEARCH PAPER
Intelligent Control Method for Continuous Miner Cutting Parameters Based on Strength Constraints
1
School of Mechanical Engineering, Liaoning Technical University, China
A – Conceptualization; B – Methodology; C – Software; D – Validation; E – Formal analysis; F – Investigation; G – Resources; H – Data curation; I – Writing – original draft; J – Writing – review & editing; K – Visualization; L – Supervision; M – Project administration; N – Funding acquisition
Submission date: 2026-03-08
Final revision date: 2026-05-09
Acceptance date: 2026-06-01
Online publication date: 2026-07-15
Publication date: 2026-08-13
Corresponding author
Eksploatacja i Niezawodność – Maintenance and Reliability 2027;29(1):223922
KEYWORDS
TOPICS
ABSTRACT

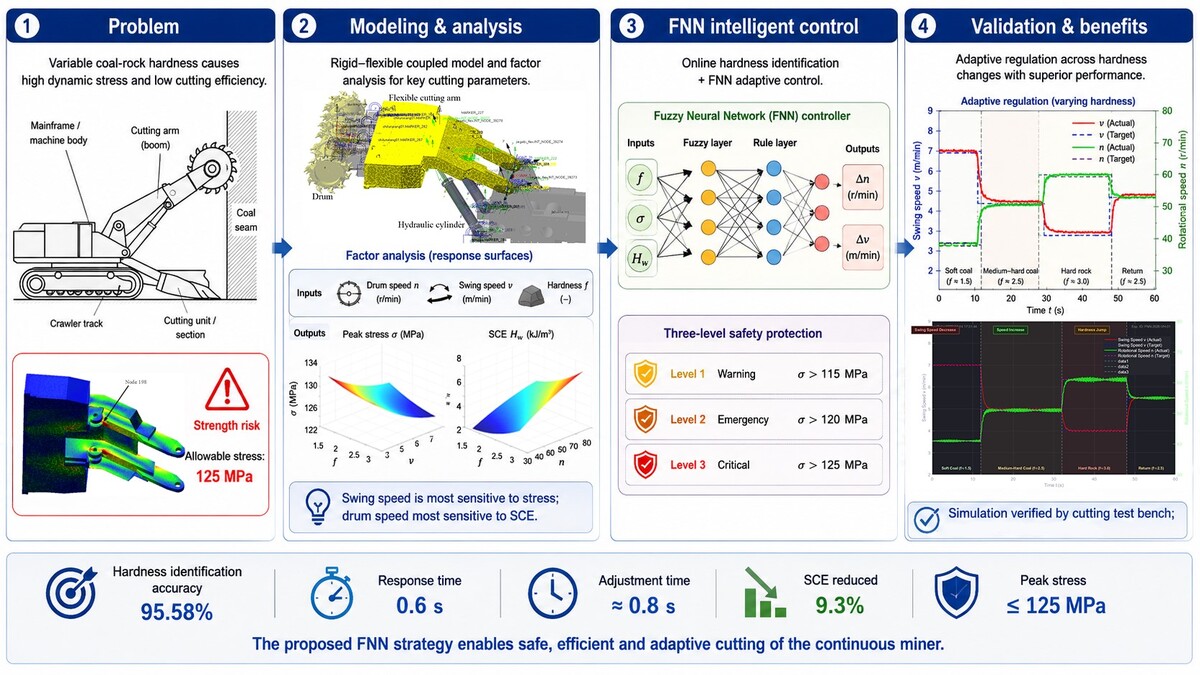

This study addresses the insufficient dynamic strength and low energy efficiency of continuous miners in complex coal seams. A rigid-flexible coupled virtual prototype of the EML340 miner revealed that stress at the cutting arm's hydraulic cylinder connection exceeds the allowable limit (125 MPa). Based on single-factor analysis of cutting parameters and coal-rock hardness, an intelligent Fuzzy Neural Network (FNN) controller was designed to optimize performance under stress constraints. Co-simulation using ADAMS and MATLAB/Simulink demonstrates that the system adaptively adjusts rotational and swing speeds in response to hardness variations. Compared with PID control, the FNN strategy reduces settling time by 87.5%, stress overshoot by 28.6%, and specific cutting energy by 9.3%, ensuring safety while enhancing efficiency. Simulation accuracy was validated via a physical cutting test bench, with a maximum relative error of 4.92% in vibration characteristics. This research provides a technical solution for achieving intelligent, efficient, and safe cutting in continuous miners.
REFERENCES (30)
1.
Li W T. Research on cutting characteristics of shearer under different coal-rock mechanical properties. Taiyuan University of Technology 2023. https://doi.org/10.27352/d.cnk....
2.
Wang G F, Liu F, Meng X J, Fan J D, Wu Q Y, Ren H W, Zhang K. Research and practice on intelligent coal mine construction (primary stage). Coal Science and Technology 2019; 47(8): 1-36. https://doi.org/10.13199/j.cnk....
3.
Li R Z. Reinforced design of the cutting unit of MG500/1220-WD shearer. Coal Mine Machinery 2011; 32(6): 22-23. https://doi.org/10.13436/j.mkj....
4.
Zhang X, Liu H J, Guo S L, Zhang L M. Simulation analysis of fatigue life of planetary carrier in shearer cutting unit. Mining & Processing Equipment 2013; 41(6): 18-21. https://doi.org/10.16816/j.cnk....
5.
Lei X Q, Yang Z J, Wang Y L. Reliability study of shearer cutting unit based on rigid-flexible coupling. Mining & Processing Equipment 2014; 42(7): 25-29. https://doi.org/10.16816/j.cnk....
6.
Zhao L J, Yang Y, Li M H. Fatigue analysis of gears in shearer cutting unit transmission system based on ANSYS. Journal of Mechanical Transmission 2014; 38(7): 135-137. https://doi.org/10.16578/j.iss....
7.
Liu S H. Reliability analysis of shearer cutting unit based on computer simulation technology. Coal Technology 2014; 33(12): 291-292. https://doi.org/10.13301/j.cnk....
8.
Liu X. Finite element analysis of torque shaft in shearer cutting unit based on ANSYS. Coal Mine Machinery 2020; 41(4): 178-180. https://doi.org/10.13436/j.mkj....
9.
Wang G. Strength analysis of shearer pin shaft based on co-simulation of ADAMS and ANSYS. Coal Mine Machinery 2020; 41(1): 181-183. https://doi.org/10.13436/j.mkj....
10.
Liu X N, Zhao L J, Huang K, Luo G H. Reliability analysis of key components in shearer cutting unit based on stress-strength interference theory. Journal of China Coal Society 2019; 44(3): 965-973. https://doi.org/10.13225/j.cnk....
11.
Liao J B, Li X B, Wang S F, Du K. Effects of cut depth and cut spacing on a conical pick in rock cutting. Rock and Soil Mechanics 2023; 44(4): 1009-1021. https://doi.org/10.16285/j.rsm....
12.
Ji M T. Influence of pick installation angle on drum performance of shearer and its optimization. Energy and Environmental Protection 2023; 45(7): 244-249. https://doi.org/10.19389/j.cnk....
13.
Zhang H Q, Han Z G, Ma C B, et al. Multi-objective optimization of roadheader cutting performance under different working conditions. Coal Engineering 2023; 55(9): 103-107.
14.
Chi N. Study on the influence of cutting parameters on specific cutting energy consumption of shearer. Mechanical Management and Development 2022; 37(8): 125-127. https://doi.org/10.16525/j.cnk....
15.
Wu Q. Research on drum structure optimization of shearer based on discrete element simulation. Mechanical Management and Development 2022; 37(10): 52-54. https://doi.org/10.16525/j.cnk....
16.
Świder J, Jasiulek D. Use of a virtual prototyping in construction of a mining machine’s control system. Journal of Achievements in Materials and Manufacturing Engineering 2009; 36(2): 160-167.
17.
Yan L C. Self-adaptive control on hydraulic system of excavators by an improved particle swarm algorithm. Chinese Hydraulics & Pneumatics 2012; (8): 105-108.
18.
Zhao L J, Li M. Simulation of fuzzy PID control for automatic height adjustment system of shearer. Journal of Liaoning Technical University (Natural Science Edition) 2016; 35(10): 1075-1080.
19.
Chen J G, Liu C S, Fan J H, Zhang Y J, Wan F. Modeling and simulation of shearer drum height adjustment system. Industry and Mine Automation 2017; 43(10): 78-82. https://doi.org/10.13272/j.iss....
20.
Wang H, Zhao G C, Song Y N, Jin X. Trajectory tracking fuzzy PID control for shearer height adjustment process. Journal of Electronic Measurement and Instrumentation 2018; 32(8): 164-171. https://doi.org/10.13382/j.jem....
21.
Mao J, Guo H, Chen H Y. Novel firefly algorithm and its application in PID control of shearer automatic height adjustment. Journal of Machine Design 2019; 36(8): 55-60. https://doi.org/10.13841/j.cnk....
22.
Liu L T, Dong S T. Adaptive speed control of shearer cutting based on BP neural network. Coal Mine Machinery 2020; 41(8): 197-199. https://doi.org/10.13436/j.mkj....
23.
Guo D, Li J H, Jiang S H, Li X, Chen Z Y. Intelligent assistant driving method for tunnel boring machine based on big data. Acta Geotechnica 2022; 17(4): 1019-1030.
24.
Zhao L J, Wang Y D, Zhang M C, Jin X, Liu H M. Adaptive cutting control strategy of shearer under complex coal seam conditions. Journal of China Coal Society 2022; 47(1): 541-563. https://doi.org/10.13225/j.cnk....
25.
Liu C S, Liu Y T, Liu R H, Bai Y F, Li D G, Shen J X. Correlation load characteristic model between shearer cutting state and coal-rock recognition. Journal of China Coal Society 2022; 47(1): 527-540. https://doi.org/10.13225/j.cnk....
26.
Cai A J, Liu J Q, Liu Y D, Ren Z G. Research on autonomous height adjustment strategy of shearer based on implicit digital twin. Mining Research and Development 2022; 42(11): 188-194. https://doi.org/10.13827/j.cnk....
27.
Zheng C, Li D N, Feng Y H. Intelligent shearer cutting control based on process driven technology. Industry and Mine Automation 2024; 50(5): 23-27. https://doi.org/10.13272/j.iss....
28.
Liu S Y, Cheng C, Wu H Z, Cui Y M, Meng D Y, Si L. Research on intelligent height adjustment control method of shearer based on coal-rock interface recognition. Coal Science and Technology 2024; 52(S2): 186-200. https://doi.org/10.13199/j.cnk....
29.
Zhang Y P. Study on the influence of kinematic parameters and structural parameters of continuous miner drum on cutting performance. Liaoning Technical University; 2024. https://doi.org/10.27210/d.cnk....
30.
Wang Y D. Research on adaptive cutting control of shearer based on CPS concept. Liaoning Technical University; 2022. https://doi.org/10.27210/d.cnk....
