RESEARCH PAPER
Experimental analysis of the influence of pneumatic strut operating parameters on the effective damping value
1
Department of Motor Vehicles, Cracow University of Technology, Poland
A – Conceptualization; B – Methodology; C – Software; D – Validation; E – Formal analysis; F – Investigation; G – Resources; H – Data curation; I – Writing – original draft; J – Writing – review & editing; K – Visualization; L – Supervision; M – Project administration; N – Funding acquisition
Submission date: 2026-04-30
Final revision date: 2026-09-14
Acceptance date: 2026-10-17
Online publication date: 2026-10-30
Corresponding author
Krzysztof Weigel-Milleret
Department of Motor Vehicles, Cracow University of Technology, Jana Pawła II, 37, 31-864, Kraków, Poland
Department of Motor Vehicles, Cracow University of Technology, Jana Pawła II, 37, 31-864, Kraków, Poland
KEYWORDS
TOPICS
ABSTRACT

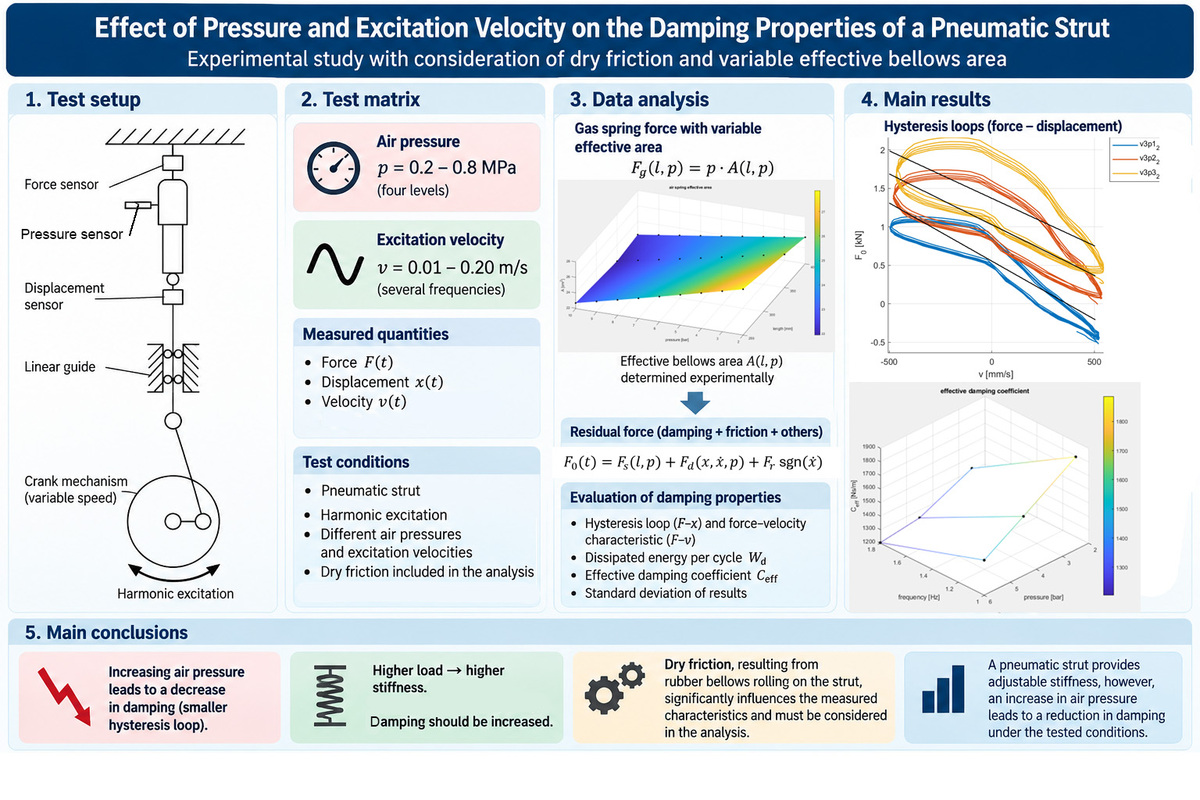

The paper presents the results of experimental studies conducted on a measurement stand concerning the effect of selected operating parameters of a commercially available pneumatic strut with a hydraulic damper on the effective damping value. The studies were conducted at different chosen operating parameters: various harmonic excitation speeds and nominal gas pressures. The studies were conducted on a laboratory stand that enabled harmonic motion of pneumatic strut and acquisition of force, displacement, and pressure in the strut’s working chamber data. The damping value was determined based on energy analysis and force-velocity characteristics. The results indicate a significant, nonlinear effect of the studied parameters on the system's damping properties. These studies allowed the collection of parameters necessary for the construction of a simplified physical model of the pneumatic strut with hydraulic damper.
REFERENCES (17)
1.
Nieto A, Morales A, González A, Chicharro J, Pintado P. An analytical model of pneumatic suspensions based on an experimental characterization. Journal of Sound and Vibration 2008; 313(1–2): 290-307. https://doi.org/10.1016/j.jsv.....
2.
Zhu H, Yang J, Zhang Y, Feng X. A novel air spring dynamic model with pneumatic thermodynamics, effective friction and viscoelastic damping. Journal of Sound and Vibration 2017; 408: 87-104. https://doi.org/10.1016/j.jsv.....
3.
Gardulski J, Konieczny Ł. Wpływ obciążenia statycznego na tłumienie kolumny hydropneumatycznej. Diagnostyka 2006; 4(40): 33-36.
5.
Hu L, Zhou C, Wan Y, Wang H. Research on the Vibration Characteristics of Air Spring Suspension Seats Considering Friction Damping. Applied Sciences 2025; 15(11): 5817. https://doi.org/10.3390/app151....
6.
Bachrach B, Rivin E. Analysis of a damped pneumatic spring. Journal of Sound and Vibration 1983; 86(2): 191-197. https://doi.org/10.1016/0022-4....
7.
Kamiński E, Pokorski J. Dynamika zawieszeń i układów napędowych pojazdów samochodowych. WKŁ 1983.
8.
Yin Z, Khajepour A, Cao D, Ebrahimi B, Guo K. Experimental and Analytical Property Characterization of a Self-Damped Pneumatic Suspension System. SAE 2010 Commercial Vehicle Engineering Congress, Chicago, Illinois, United States; 2010. https://doi.org/10.4271/2010-0....
9.
Qin W, Liao X, Ding R, Liu F, Zheng Y, Liu X. Theoretical and experimental analysis of dynamic characteristics of a two-tube air spring with auxiliary reservoir. Mechanical Systems and Signal Processing 2025; 233: 112764. https://doi.org/10.1016/j.ymss....
10.
Masliyev V, Dushchenko V, Yepifanov V, Nanivskyi R, Cherevko Y, Masliev A, Demydov A, Makarenko Y. Improving the damping of vehicle vibration by improving pneumatic springs. Eastern-European Journal of Enterprise Technologies 2022; 1(7(115): 59-66. https://doi.org/10.15587/1729-....
11.
Fongue W. Air Spring Air Damper: Modelling and Dynamic Performance in Case of Small Excitations, SAE International Journal of Passenger Vehicle Systems 2013; 6(2):1196-1208. DOI: 10.4271/2013-01-1922.
12.
Vo N, Le T. Analysis model of restoring force of a rubber air spring. Journal of Vibroengineering 2021; 23(5): 1138-1147. https://doi.org/10.21595/jve.2....
13.
Gheorghe V, Chircan E, Draghicescu H. Research on the Use of Hydro-Pneumatic Shock Absorbers for the Rear Suspension of a Vehicle Cabin, Applied Sciences 2025; 15: 7759. https://doi.org/10.3390/app151....
14.
Wu M, Yin H, Li X, Lv J, Liang G, Wei Y. A new dynamic stiffness model with hysteresis of air springs based on thermodynamics. Journal of Sound and Vibration 2022; 521: 116693. https://doi.org/10.1016/j.jsv.....
15.
CARiD.com https://www.carid.com/monroe/m... VCtOltVERl1CdiiM --tZQib9HLcgDijLjIxiXkdiPk); 2026 [accessed 12 March 2026].
16.
Milašinović D. Rheological–dynamical analogy: Prediction of damping parameters of hysteresis damper. International Journal of Solids and Structures 2007; 44(22-23): 7143-7166. https://doi.org/10.1016/j.ijso....
17.
Konieczny Ł. The determining of the damping characteristics of hydropneumatic suspension strut on test stand. Vibroengineering Procedia 2014; 3: 199-203.
